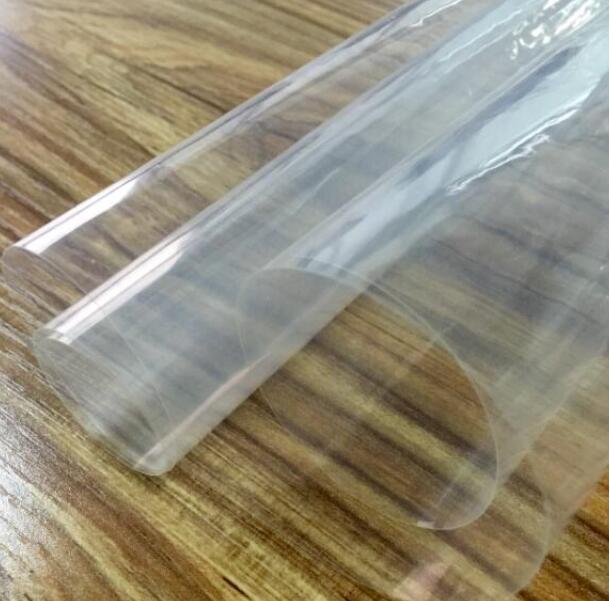

Perfluorinated Sulfonic Acid Ion-Exchange Membrane For Electrolysis

The ion exchange membrane for electrolysis is produced by the unique tape casting process with appropriate molecular weight and ion exchange capacity of perfluorosulfonic acid resin to form homogeneous membrane with uniform thickness,the Ion-Exchange Membrane has the characteristics of high tensile strength, isotropic, high electrical conductivity, good chemical properties, and so on.

The Principle of electrolysis water

electrolysis water to produce hydrogen Water reacts at the anode to form oxygen and positively charged hydrogen ions (protons).
The electrons flow through an external circuit and the hydrogen ions selectively move across the PEM to the cathode.
At the cathode, hydrogen ions combine with electrons from the external circuit to form hydrogen gas.
Anode Reaction: 2H2O → O2 + 4H+ + 4e- C
athode Reaction: 4H+ + 4e- → 2H2

Technical Specifications(Reference Standard):

Physical and Other Properties
Physical Properties
Measured at 50% RH, 23 °C

Values

Test Method







Tensile Strength MD, max., MPa

36

ASTM D882

Tensile Module, MPa

410

ASTM D882

Elongation at break, %

190

ASTM D882

Specific Gravity

1.98

体积称重法







Other Properties

Values

Test Method

Conductivity, S/cm

0.10

GB/T 20042.3-2009

Acid capacity, meq/g

1.0

GB/T 20042.3-2009







Hydrolytic Properties

Values

Test Method

Water Content, %

5.0±3.0

ASTMD570

Water Uptake, %

50.0±5.0

ASTMD570

Thickness Change,
from 50% RH, 23 °C to water soaked, 23 °C
from 50% RH, 23 °C to water soaked, 100 °C


10.0%
18.0%



ASTM D 756
ASTM D 756

Linear Expansion,
from 50% RH, 23 °C to water soaked, 23 °C
from 50% RH, 23 °C to water soaked, 100 °C


10.0%
15.0%



ASTM D 756
ASTM D 756

1, Measurements taken with membrane conditioned to 23°C,50% RH.
2, Conductivity measurements at 23°C,100% RH.
3, A base titration procedure measures the equivalents of sulfonic acid in the polymer, and uses the measurement to calculate the acid capacity or equivalent weight of the membrane.
4, Water content of membrane conditioned to 23°C and 50% RH (dry weight basis).
5, Water uptake from dry membrane to conditioned in water at 100°C for 1hour (dry weight basis).

Thickness and Weight:

Thickness(μm)
Weight(g/m2)
127
250
183
360
254
500

Remarks:The thickness is approximate number, we do not assure absolute precision. Please contact with our salesman if special thickness is requested.

Packing:

Our Perfluorinated Ion-Exchange Membrane has sheet and continuous roll:
Sheet material standard size:600mm*600mm;800mm*800mm
Continuous Roll: 800mm width and 680mm with continuous roll
We can also provide special customized size according to your requirement.
Standard packing is packaging the PIEM in plastic drum or bucket.
