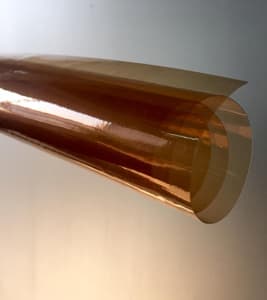

Perfluorinated Ion-Exchange Membrane for  Electrolysis

Cation exchange membranes are selective membranes of cations, usually sulfonic acid type, with immobilised groups and cleavable ions. For example, the sodium-type sulfonic acid-type immobilisation group is sulfonate, and the dissociation ion is sodium ion. . The cation exchange membrane can be regarded as a kind of polymer electrolyte. Since the positive membrane is negatively charged, although the original dissociated positive ion is dissociated into the water by the action of water molecules, it is energized by the electric field outside the membrane and is positively charged. The cations can pass through the positive film, while the anions cannot pass because of homosexual rejection, so they have selective permeability.
The perfluorinated cation exchange membranes are produced with the new casting method, the casting process can be combined with doping technology,we add new fluororesin mixing formula with good vanadium resistance in the casting process, the Ion-Exchange Membrane has high tensile strength, isotropic, high electrical conductivity, good chemical properties, and so on.

Technical Specifications(Reference Standard):

Physical and Other Properties
Physical Properties
Measured at 50% RH, 23 °C

Values

Test Method

Tensile Strength, max., MPa

50

ASTM D882

Elongation at break, %

120

ASTM D882

Specific Gravity

1.3

体积称重法

Other Properties

Values

Test Method

Conductivity, S/cm

0.083

GB/T 20042.3-2009

Acid capacity, meq/g

1.0

GB/T 20042.3-2009

Hydrolytic Properties

Values

Test Method

Water Content, %

5.0±3.0

ASTMD570

Water Uptake, %

50.0±5.0

ASTMD570

Thickness Change,
from 50% RH, 23 °C to water soaked, 23 °C
from 50% RH, 23 °C to water soaked, 100 °C


5.0%
8.0%



ASTM D 756
ASTM D 756

Linear Expansion,
from 50% RH, 23 °C to water soaked, 23 °C
from 50% RH, 23 °C to water soaked, 100 °C


2.0%
5.0%



ASTM D 756
ASTM D 756

Remarks:
1, Measurements taken with membrane conditioned to 23°C,50% RH.
2, Conductivity measurements at 23°C,100% RH.
3, A base titration procedure measures the equivalents of sulfonic acid in the polymer, and uses the measurement to calculate the acid capacity or equivalent weight of the membrane.
4, Water content of membrane conditioned to 23°C and 50% RH (dry weight basis).
5, Water uptake from dry membrane to conditioned in water at 100°C for 1hour (dry weight basis ).

Thickness and Weight:

Thickness(μm)
Weight(g/m2)
220
290

Remarks:The thickness is approximate number, we do not assure absolute precision. Please contact with our salesman if special thickness is requested.

Applications:

The Ion-Exchange Membrane SY-15P is mainly used in high-salt wastewater treatment, electrodialysis and other electrolysis industries

Packing:

Our Perfluorinated Ion-Exchange Membrane has sheet and continuous roll:
Sheet material standard size:600mm*600mm;800mm*800mm;1000mm*1000mm
Continuous Roll: 800mm width and 680mm with continuous roll
We can also provide special customized size according to your requirement.
Standard packing is packaging the PIEM in plastic drum or bucket.
