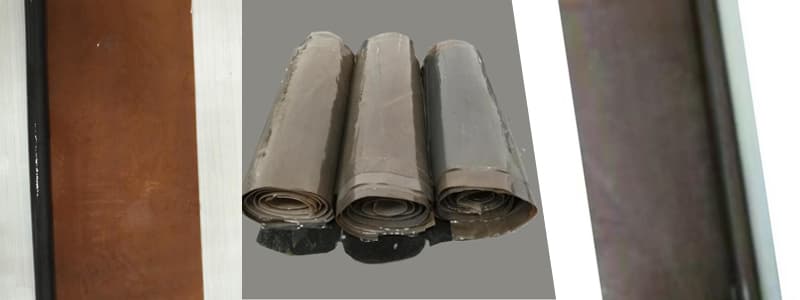

Homogeneous cation exchange membrane

The cation exchange membranes are membranes that have a selective effect on cations. They are usually sulfonic, with fixed groups and dissociable ions. For example, sodium-type sulfonic-type fixed groups are sulfonate and dissociated ions are sodium ions. The cation exchange membrane can be regarded as a kind of polymer electrolyte. Because the positive membrane is negatively charged, although the original dissociated positive ions are dissociated into the water by the action of water molecules, electricity is applied to the outside of the membrane through the action of an electric field. The cation can pass through the cation membrane, while the anion cannot pass through because of the same-sex repulsion, so it has selective permeability.

Characteristics of Ion Exchange Membrane

  • High ion selective permeability
  • Commonly used expression of counter ion mobility or membrane transmittance, JCM, JAM series ions The selectivity of exchange membranes to counter ions is over 90%, and the permeability of ions with the same charge is low.
  • High switching capacity and low surface resistance
  • Homogeneous membranes prepared by immersion method have thin thickness, no adhesives and supporting materials, high charge density of functional groups, strong conductivity and much lower power consumption than heterogeneous ion exchange membranes. Membrane resistance is the main factor that decides the operation cost of the project.

The CEM cation exchange membrane for Electrodialysis of brine desalination and concentration:

Item

CEM70

Thickness(mm)

0.075

Exchange Capacity (Mol/kg)

1.0-1.5

Selectivity (%)

98

Electrical resistance (Ω.cm2)

4--5

Water Content (%)

20-30

Burst Strength (Mpa)

0.25

The CEM cation exchange membrane for Bipolar membrane Electrodialysis :

Item

CEM200

Thickness(mm)

0.14-0.35

Exchange Capacity (Mol/kg)

1.8-3.0

Selectivity (%)

95

Electrical resistance (Ω.cm2)

3.0-6.5

Water Content (%)

30-40

Burst Strength (Mpa)

0.25

The CEM cation exchange membrane for Electrodialysis of brine desalination and concentration:

Item

CEM70

Thickness(mm)

0.075

Exchange Capacity (Mol/kg)

1.0-1.5

Selectivity (%)

98

Electrical resistance (Ω.cm2)

4--5

Water Content (%)

20-30

Burst Strength (Mpa)

0.25

The CEM cation exchange membrane for diffusion dialysis :

Type SYDDC1 SYDDC2
Standard High Flux
Thickness (mm) 0.25~0.28 0.15~0.25
Water content (%) 50~70 40~80
Diffusion Coefficient (10-7m/s) ≥15 ≥2
Separation factor OH-/AlO2+ ≥10 ≥15

Applications:

Our Homogeneous Anion Exchange Membrane is particularly suitable for use for electrodialysis in the following fields
1,Desalting, brackish water desalination
2,BPFD making acid and alkali with salt
3,Inorganic salt concentration

Packing:

Length(mm): 12060, 8040,4020,3010
